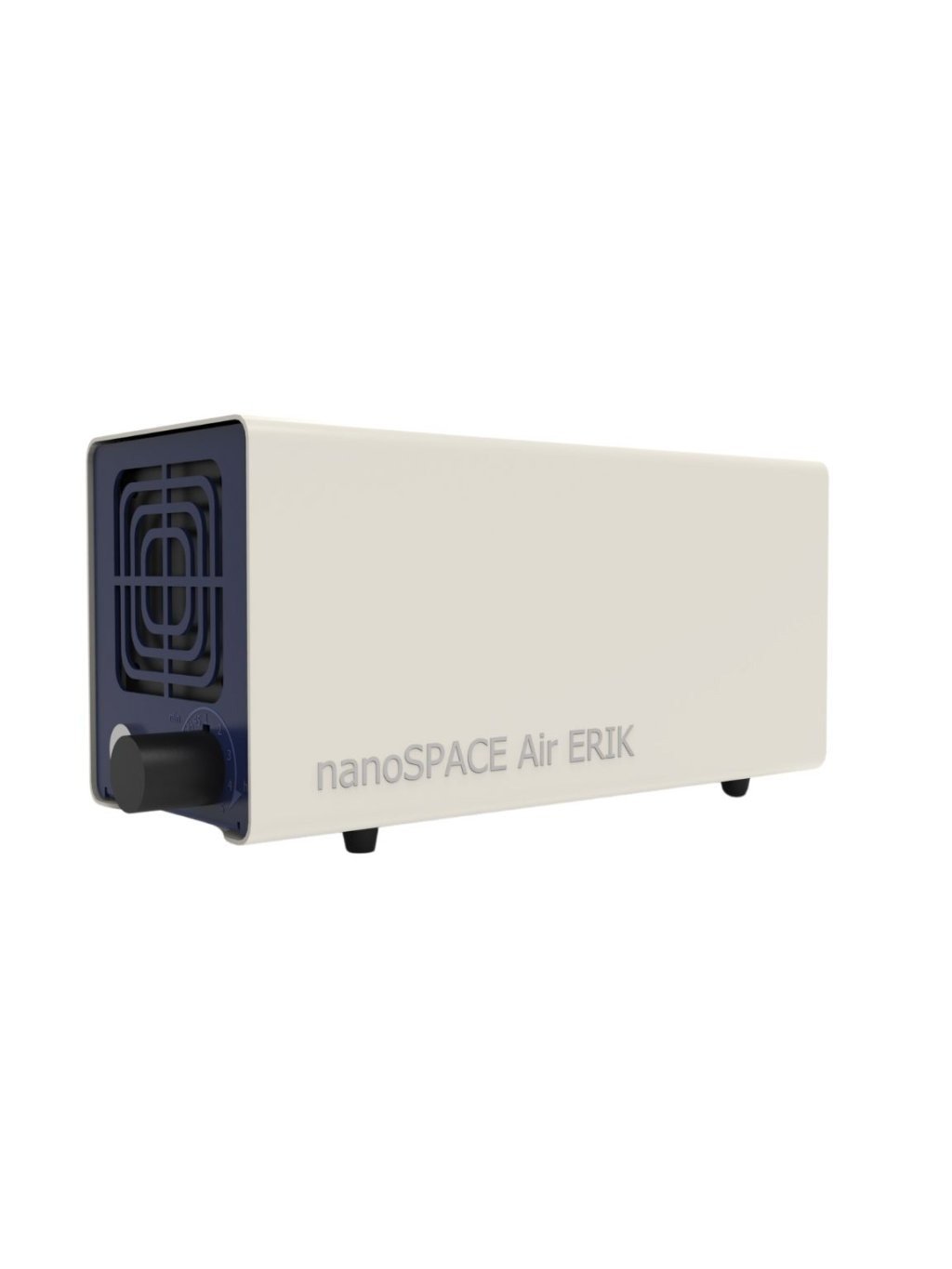

nanoSPACE Air ERIK Ozone Generator for cars and rooms up to 30 m³

Product detailed description

The ERIK mini ozone generator effectively disinfects rooms and surfaces (smooth surfaces, textiles, porous materials, etc.), destroying viruses (including coronaviruses), bacteria, molds, allergens, and other unwanted substances. The conversion of oxygen into ozone is 100% environmentally friendly. To achieve more than 90% disinfection, longer exposure times are required (independently verified). For this reason, nanoSPACE Air generators allow ozone production for up to 8 hours.

Clean and healthy air for your home, office, car, or while traveling

Unlike conventional air purifiers that only filter air and partially eliminate odors, an ozone generator removes unwanted odors of various origins as well as all harmful microorganisms. By using the ERIK generator, you ensure a healthy, harmless, and safe environment. Perfect disinfection of spaces in your home, including wardrobes, children’s toys, or refrigerators.

Main advantages of the nanoSPACE Air ERIK ozone generator

• lower power consumption, higher efficiency
• higher fan performance, greater ozone distribution range
• the device switches off when voltage drops below 11.5 V DC – protection against car battery discharge
• child safety lock – if any object enters the fan through the grille, the device automatically switches off

How the nanoSPACE Air ERIK ozone generator works

Air from the room is drawn by a fan into the nanoSPACE Air ERIK device, where a portion of the airborne oxygen is converted into ozone by a corona discharge. The device first breaks oxygen molecules in the intake air into individual atoms using a high-voltage corona discharge. These atoms then regroup in threes to form ozone molecules.

Thanks to the fact that ozone is a powerful oxidizing agent, it removes all sources of contamination or odors through its action and ensures complete disinfection of the treated areas. When the correct cleaning procedure is followed, complete disinfection and elimination of all contaminating and hazardous substances is achieved. During these reactions, ozone converts back into oxygen. The use of ERIK ozone generators is completely safe and 100% environmentally friendly.

Application

1. Before starting ozonation, carefully read the user manual.
2. No people or live animals may remain in the room. Remove live plants as well.
3. Remove sources of odors such as cigarette butts, ash, and biological waste.
4. Make sure all windows are closed. Place the ozone generator on a stable surface.
5. Set the desired time (see table below) and start the ozonation process. If you have no experience using the device, always set the lowest time and repeat the process if necessary.
6. Leave the room and close the door. If necessary, seal the space under the door.
7. Do not enter the room immediately after ozonation ends. Allow the ozone at least 1 hour to decompose and dissipate.
8. Ventilate the room thoroughly.

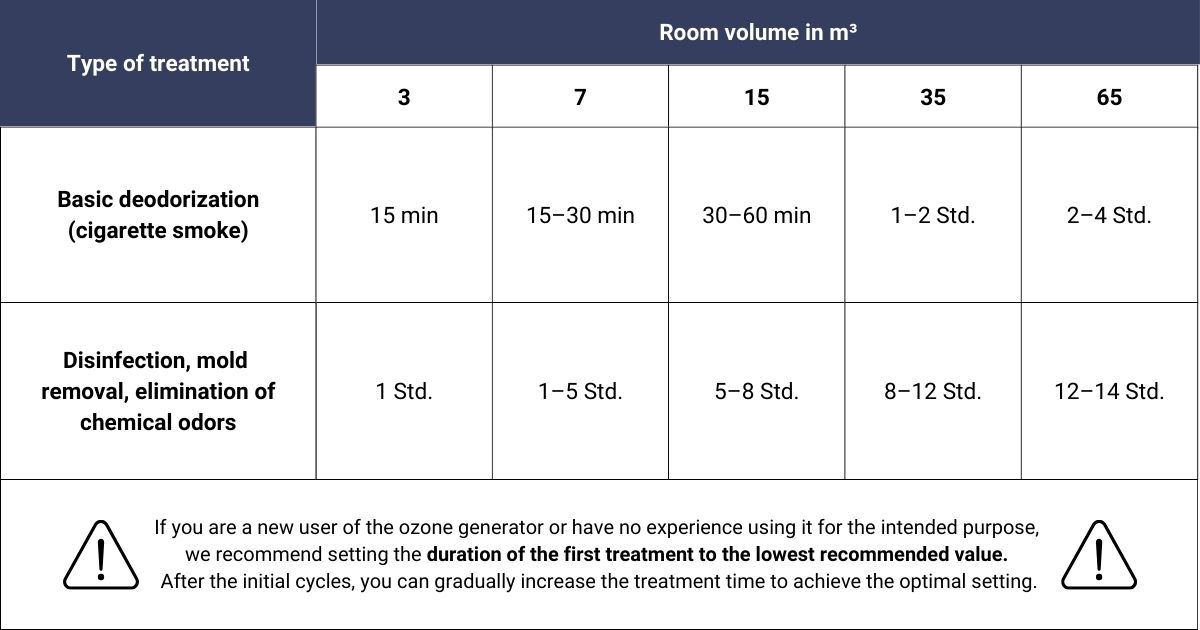

Indicative disinfection times

Warnings for the use of ozone generators

Although ozone occurs naturally in the Earth’s atmosphere, it is a toxic gas with a characteristic metallic smell. No people or animals may be present in rooms during ozone treatment! For longer exposure times, it is recommended to remove houseplants from the room. Do not use the device in dusty environments or at air humidity above 60%. No liquids must enter the device. If this happens, do not use the device and contact the manufacturer. Do not unplug the power cable from the electrical outlet while the generator is producing ozone, as this could damage the built-in electronics.

Package contents:

• 1× nanoSPACE Air ERIK ozone generator
• 1× 230V AC adapter
• 1× 12V DC car adapter
• 1× User manual

Specifications:

• Dimensions: 170 × 83 × 73 mm
• Weight: 630 g
• Noise level: 38 dB
• Power consumption: 7 W
• Power supply: 100–240 V AC, 50/60 Hz and 12 V DC (adapters included)
• Airflow: 31 m³/h
• Ozone output: up to 0.5 g/h
• Discharge module lifetime: 5,000 hours
